Stump Shear

| | | | |

-180° 180°

SS

Finish your land clearing jobs in-depth by uprooting and cutting huge stumps into smaller chunks before sending it to shredding equipment.

Extreme Cutting Force;
Replaceable high resistance teeth;
Low maintenance.

Complete catalog

Sell sheet

Get a quote

Product specifications

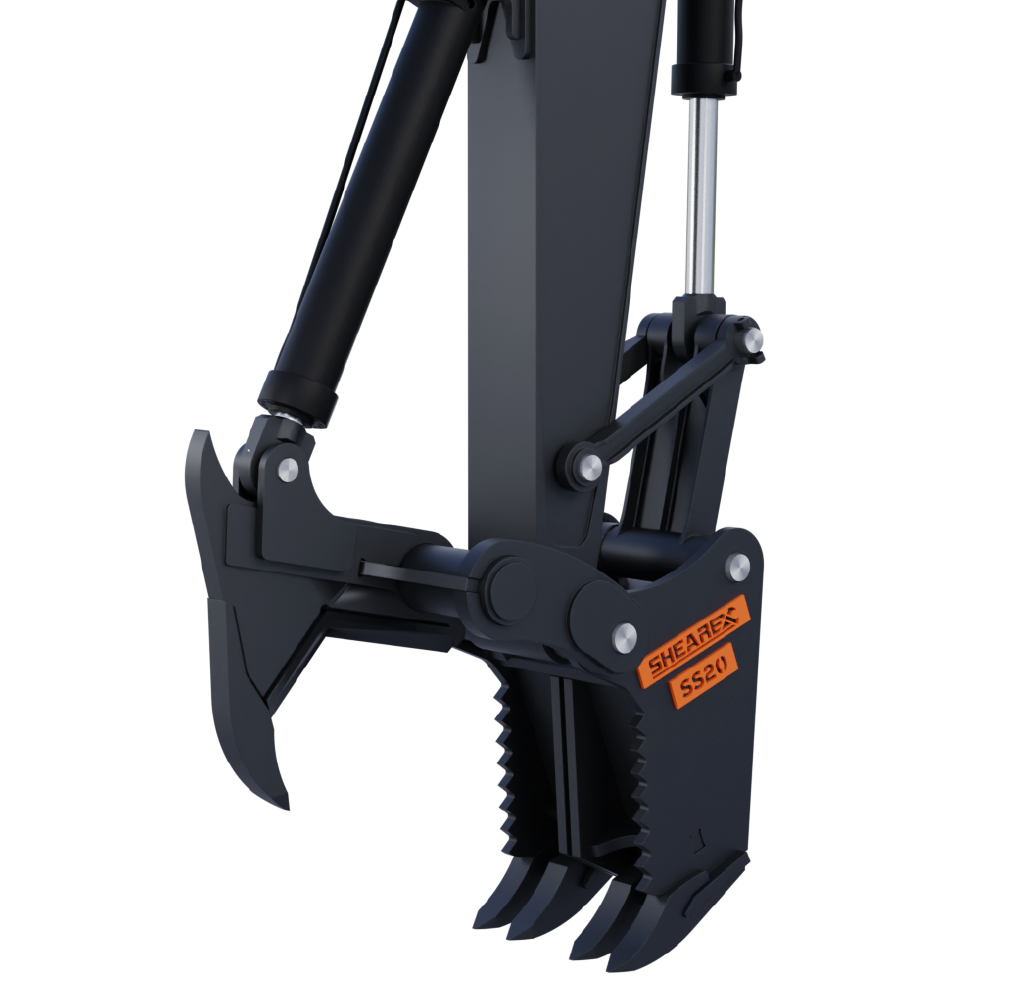

The stump shear is the ideal tool if your land clearing job requires you to leave no stump after the trees are removed. It’s robust design can dig and break down stumps. It can also be used to split larger chunks of wood into more manageable pieces that will fit in your shredding equipment.

TECHNICAL SPECIFICATIONS

Model	SS16
Carrier	12t - 16t
Weight lb (kg)	2315 (1050)
Opening in (mm)	52 (1321)
Width in (mm)	22 (559)
Tip Radius in (mm)	32 (813)
Cut lenght in (mm)	21 (533)

Model	SS16M
Carrier	12t - 16t
Weight lb (kg)	2315 (1050)
Opening in (mm)	52 (1321)
Width in (mm)	22 (559)
Tip Radius in (mm)	32 (813)
Cut lenght in (mm)	21 (533)

Model	SS20
Carrier	15t - 24t
Weight lb (kg)	2811 (1275)
Opening in (mm)	58 (1473)
Width in (mm)	25 (635)
Tip Radius in (mm)	34 (864)
Cut lenght in (mm)	24 (610)

Model	SS20M
Carrier	15t - 24t
Weight lb (kg)	2811 (1275)
Opening in (mm)	58 (1473)
Width in (mm)	25 (635)
Tip Radius in (mm)	34 (864)
Cut lenght in (mm)	24 (610)

Model	SS27
Carrier	18t - 25t
Weight lb (kg)	3858 (1750)
Opening in (mm)	64 (1626)
Width in (mm)	30 (762)
Tip Radius in (mm)	42 (1067)
Cut lenght in (mm)	30 (762)

Model	SS27M
Carrier	18t - 25t
Weight lb (kg)	3858 (1750)
Opening in (mm)	64 (1626)
Width in (mm)	30 (762)
Tip Radius in (mm)	42 (1067)
Cut lenght in (mm)	30 (762)

Model	SS30
Carrier	25t - 38t
Weight lb (kg)	5512 (2500)
Opening in (mm)	68 (1727)
Width in (mm)	30 (762)
Tip Radius in (mm)	43 (1092)
Cut lenght in (mm)	31 (787)

Model	SS30M
Carrier	25t - 38t
Weight lb (kg)	5512 (2500)
Opening in (mm)	68 (1727)
Width in (mm)	30 (762)
Tip Radius in (mm)	43 (1092)
Cut lenght in (mm)	31 (787)

Model	SS40
Carrier	30t - 50t
Weight lb (kg)	7716 (3500)
Opening in (mm)	72 (1828)
Width in (mm)	32 (813)
Tip Radius in (mm)	48 (1219)
Cut lenght in (mm)	34 (864)
