Excavator Forestry Mulcher

product--img
| | | | |
-180° 180°
Excavator mulcher VM Serie
Excavator mulcher VM Serie
CARBIDE TOOTH AND BLADE
Excavator mulcher VM Serie
Excavator mulcher VM Serie
CARBIDE TOOTH AND BLADE

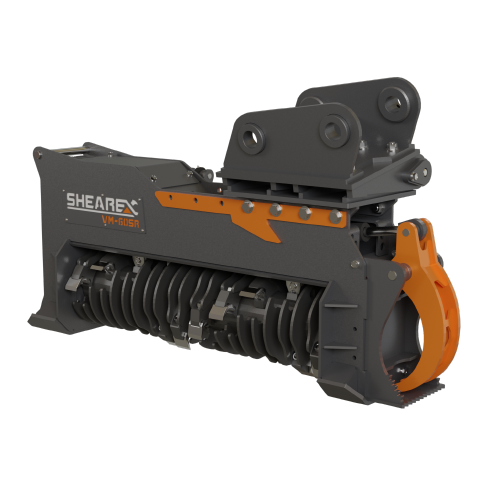

VM Series - Excavator Mulchers

NEW CARBIDE TEETH AVAILABLE

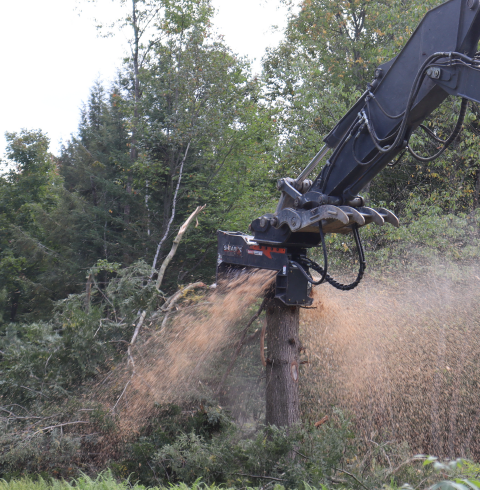

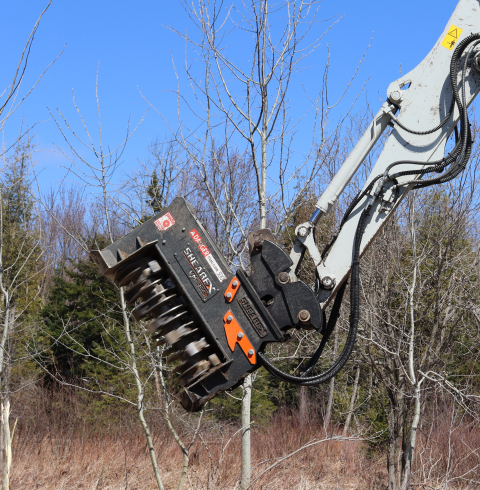

Shearex’s excavator mulcher attachment is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance! With years of experience, Shearex provides one of the most powerful attachment for land clearing on the market. Want to see our mulcher in action? Contact us for a free demo before buying your attachment!

  • Choose between carbide teeth or blades.
  • CONVEX DX™ Protection System
  • G2.0 BALANCING STANDARD ZERO VIBRATION ROTOR
  • Blade Angle Optimized for a Perfect Cut
  • Customer kit in a robust Dewalt Shell Tough Box included with each purchase
  • Optional Grapple System

Product specifications

CONVEX DX™ PROTECTION SYSTEM
The protection system on our excavator mulchers is made out of four types of fins that limit the amount of material cut with each pass and concentrates the smaller material toward the center of the blades.

BLADE ANGLE OPTIMISED FOR A PERFECT CUT
Our new blade and blade mount design allows for greater durability and cutting power. The rotor on our excavator mulchers maintains its power throughout the blades’ lives.

ROADSIDE MAINTENANCE
Whether it’s to clear the sides of hunting lanes, trails, roads or highways, the power and speed of our mulcher heads are unparallel to anything else on the market.

FOREST FIRE PREVENTION WITH OUR FORESTRY MULCHERS
Cutting firebreaks can be a safe and efficient way to limit the spread of forest fires. Shearex’s excavator mulchers are the best forestry mulchers on the market today!

INFRASTRUCTURE
Excavator mulchers can easily manage new roads to maintain a right of way under electrical lines or over pipelines.

LAND MANAGEMENT
Mulching heads are the most efficient tool to cut underbrush and keep your private property accessible.

TECHNICAL SPECIFICATIONS

Model

  Excavator Size t (lbs) Recommended Min. Carrier Power kW (hp) Cutting Width A in (CM) Cutting Distance From Ground Level in (CM) Number of Blades on Rotor Optimal Target Mat. Dia. in (CM) Exterior Length B in (CM) Exterior Height C in (CM) Exterior Width  D in (CM) Rotor Diameter in (CM) Approximate Weight lbs (KG)   Variable Displacement Axial Piston Motor
cc
Min. Required Continous Flow
gal/min (l/min)
Max. Operating Pressure
psI (bar)
Rotating Speed
rpm
Pulley Ratio Pressure Line I.D. # (in) Return Line I.D. # (in) Drain Line I.D. # (in)   Tilting System Bolt-on Wear Liner Grappling Hook
VM-25SK   5 to 8
(11,000 to 18,000)
37 (50) 27.5 (70) 0.25 (0.64) 9  <4 (<10) 41 (104) 30.5 (77) 23 (58) 15.15 (38) 1,100 (499) 28 13 (49) 6,000 (410) 3,800 01:02:01 #12 (0.75) #12 (0.75) #8 (0.5)   Optional N/A N/A
VM-35SK   8 to 12
(18,000 to 26,000)
40 (54) 37.2 (94.5) 0.25 (0.64) 11 4 (10) 50 (127) 30 (76) 25 (63) 15.15 (38) 1,150 (522) 60 20 (76) 6,000 (410) 3,400 01:01 #10 (0.625) #10 (0.625) #8 (0.5)   Optional N/A Optional
VM-40SL   12 to 15
(26,000 to 33,000)
48 (65) 42 (106.7) 0.25 (0.64) 14 6 (15) 57 (140) 33.5 (85) 25.4 (64.5) 16 (41) 1,668 (757) 80 30 (114) 6,000 (410) 3,500 01:01 #16 (1) #16 (1) #10 (0.625) Optional Included Optional
VM-50SR   15 to 20
(33,000 to 44,000)
59 (80) 48.4 (123) 0.25 (0.64) 17 10 (25) 66 (168) 35 (89) 28 (71) 17.7 (45) 2,150 (975) 110 42 (159) 6,000 (410) 3,000 01:02:01 #16 (1) #16 (1) #12 (0.75)   Optional Included Optional
VM-60SR   20 to 25
(44,000 to 55,000)
96 (130) 58.75 (149) 0.25 (0.64) 21 15 (40) 77 (195) 35 (89) 28 (71) 17.7 (45) 2,614 (1,188) 110 42 (159) 6,000 (410) 3,000 01:02:01 #16 (1) #16 (1) #12 (0.75)   Optional Included Optional
VM-65SV   25 to 40
(55,000 to 88,000)
127 (170) 65 (165) 0.25 (0.64) 21 20 (50) 89 (226) 42 (107) 29 (74) 19.7 (50) 3,707 (1,681) 160 51 (193) 6,000 (410) 3,000 01:02:01 #16 (1) #20 (1.25) #12 (0.75)   Optional Included Optional

COMPATIBILITY

Our excavator mulchers are available for excavators weighing between 3 to 40 tons.

Shearex's forestry mulchers fit regular-sized excavators, and we also offer mini-excavator mulchers for smaller excavators.



Options

Optional tilt system - The tilt system on our mulching heads for excavators allows for increased flexibility and superior visibility. Using the right technique, the tilt can also increase productivity by letting gravity do the majority of the work.

Optional back grapple - Move and sort through smaller materials or pile them up for greater mulching control with Shearex’s excavator mulcher head VM model!

Different types of blade - Choose between our carbide tooth or blade, depending on your operations.
