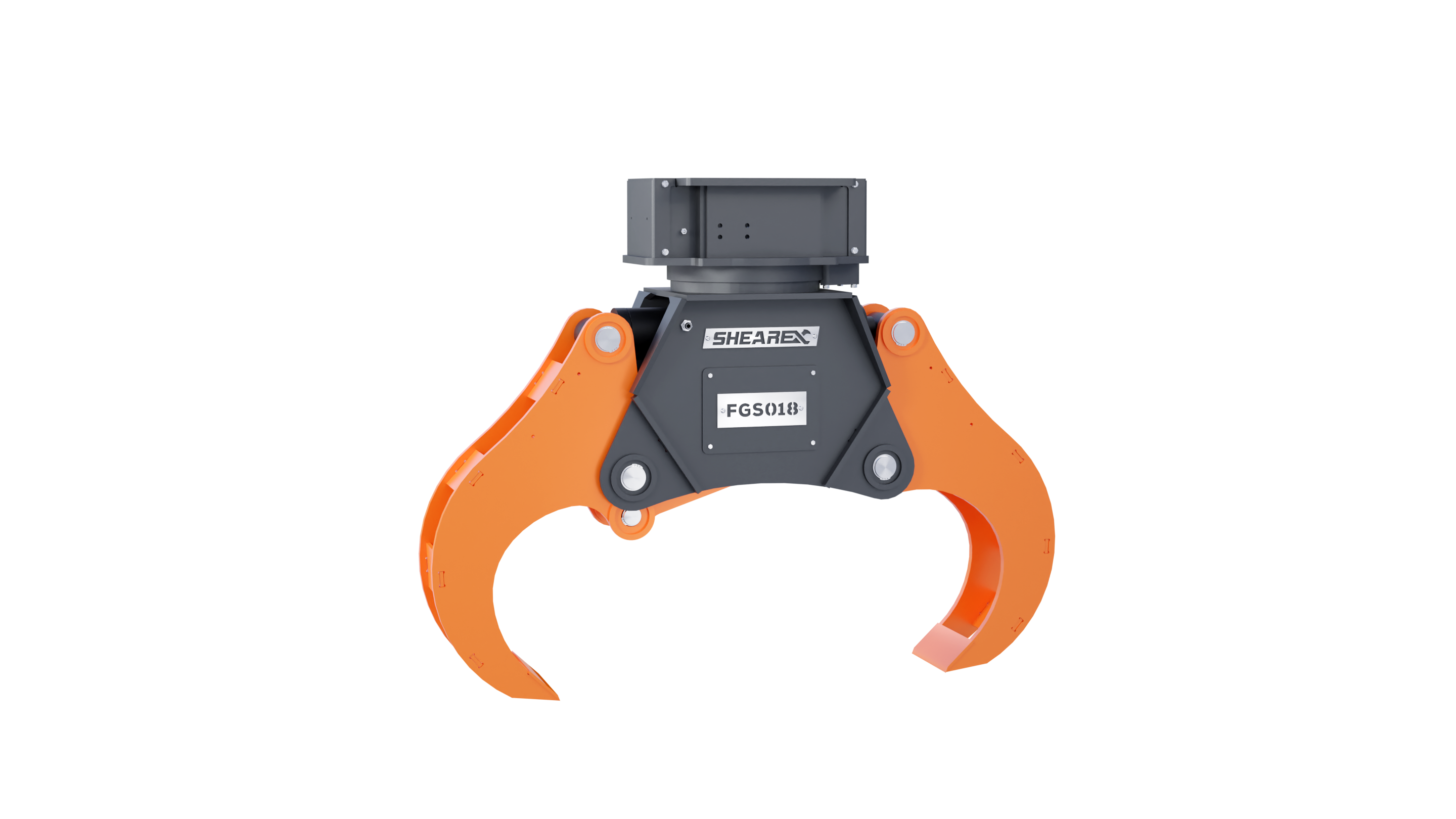

Log Splitter Grapple

| | | | |

-180° 180°

FGS

The Shearex log splitter grapple is the ideal tool if you have to move and split logs as part of your forestry operation. It boosts your productivity by giving you two tools in one package.

High Capacity
Robust Design
Low Maintenance

Complete catalog

Product specifications

TECHNICAL SPECIFICATIONS

Model	FGS005
Carrier	3t - 5t
Weight lb (kg)	450 (204)
Opening in (mm)	24 (610)
Width in (mm)	6 (152)
Depth in (mm)	12 (305)
Pressure PSI (bar)	4640 (320)
Force (t)	10

Model	FGS007
Carrier	6t - 8t
Weight lb (kg)	670 (304)
Opening in (mm)	32 (812)
Width in (mm)	8 (203)
Depth in (mm)	18 (458)
Pressure PSI (bar)	4640 (320)
Force (t)	15

Model	FGS012
Carrier	9t - 13t
Weight lb (kg)	1154 (524)
Opening in (mm)	41.25 (1048)
Width in (mm)	10 (254)
Depth in (mm)	20 (508)
Pressure PSI (bar)	4640 (320)
Force (t)	25

Model	FGS018
Carrier	14t - 21t
Weight lb (kg)	2122 (964)
Opening in (mm)	54.5 (1385)
Width in (mm)	12 (305)
Depth in (mm)	28 (711)
Pressure PSI (bar)	5000 (350)
Force (t)	35

Model	FGS025
Carrier	22t - 30t
Weight lb (kg)	4410 (2000)
Opening in (mm)	71 (1803)
Width in (mm)	16 (406)
Depth in (mm)	35 (889)
Pressure PSI (bar)	5000 (350)
Force (t)	50

COMPATIBILITY

The log splitter grapple is available from 3 to 30 ton excavators.
