Front Mount Mulcher

| | | | |

-180° 180°

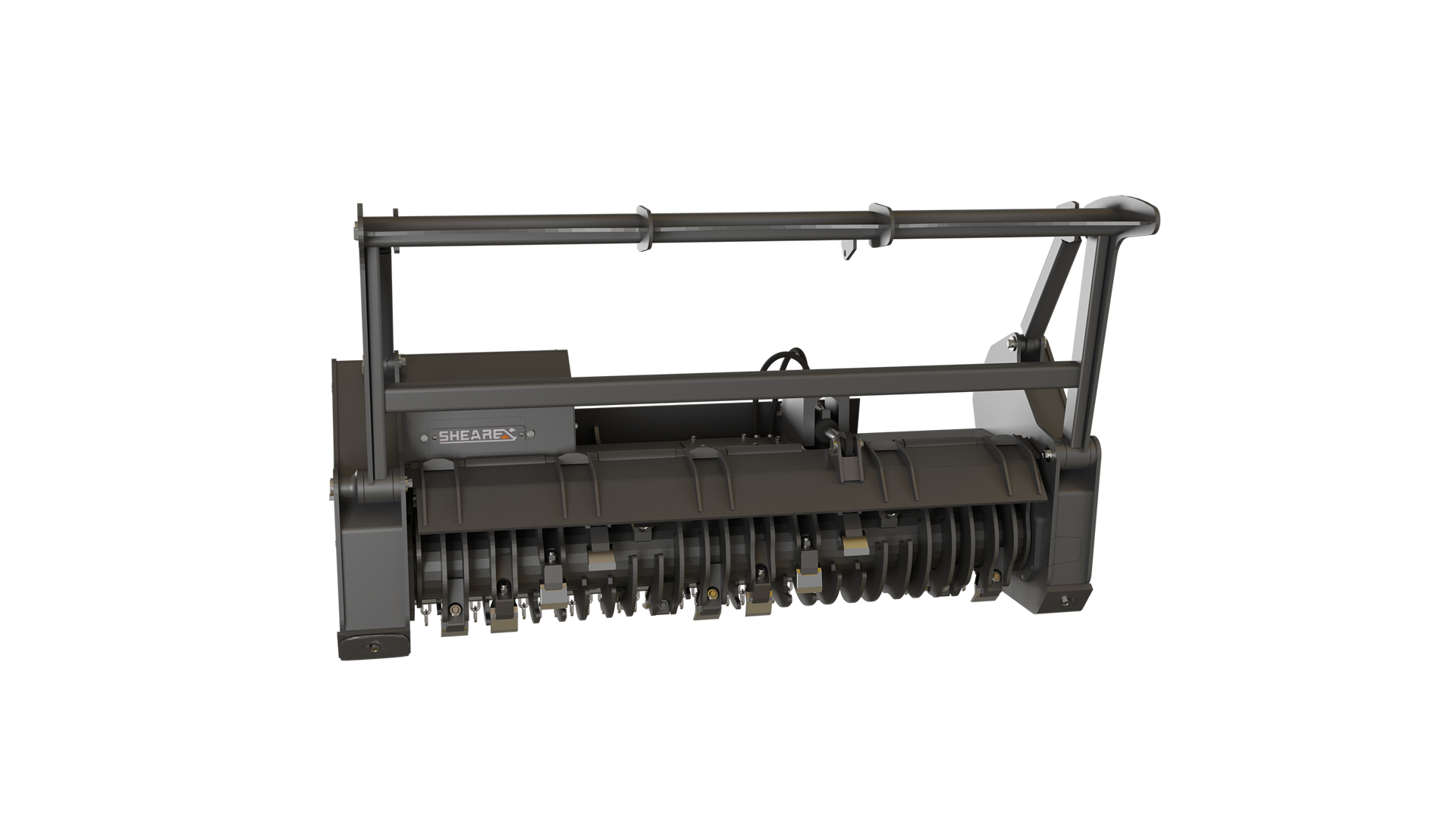

Bite Limiter Mulcher - HM Series

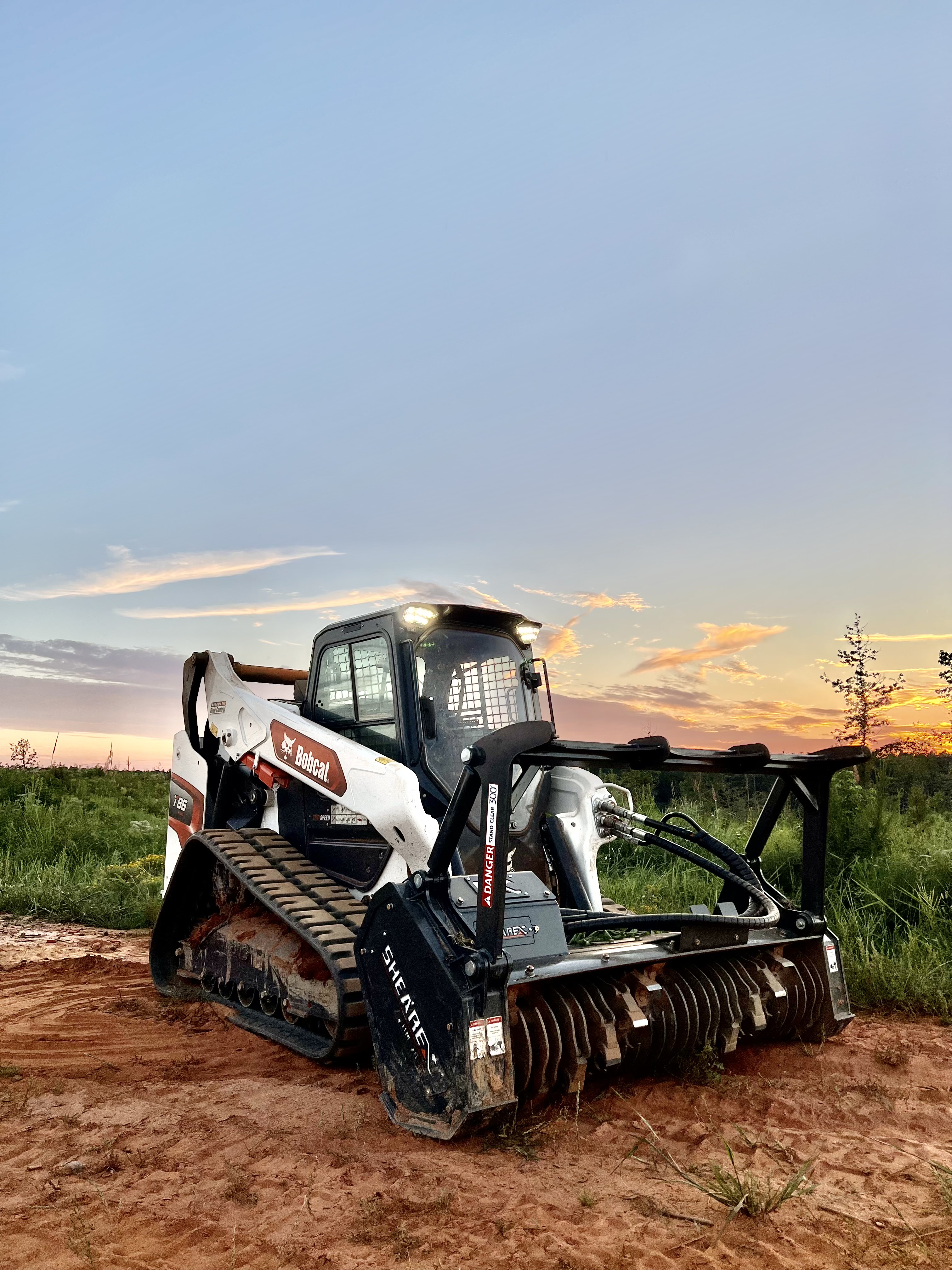

Shearex’s front mount bite limiter mulcher is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance. This mulcher offers the speed and power to complete any land-clearing job, with a bolt-on liner and skid shoes made of Hardox® for ultimate wear resistance, easy maintenance or replacement. Use our forestry mulcher with your skid steer to be able to clear land with the utmost efficiency.

High visibily.
Bolt-on liner and skid shoes made of Hardox® for ultimate wear resistance. Easy maintenance or replacement.
Closer center of gravity for better handling.
Robust rotor design.
High torque variable and adjustable motor.
Up to 100 inches cutting width.
Innovative oil cooling system: Cools the oil when running idle, resulting in a temperature reduction of 30 to 50°C.

Complete catalog

Get a quote

Product Specification

BITE LIMITER MULCHERS

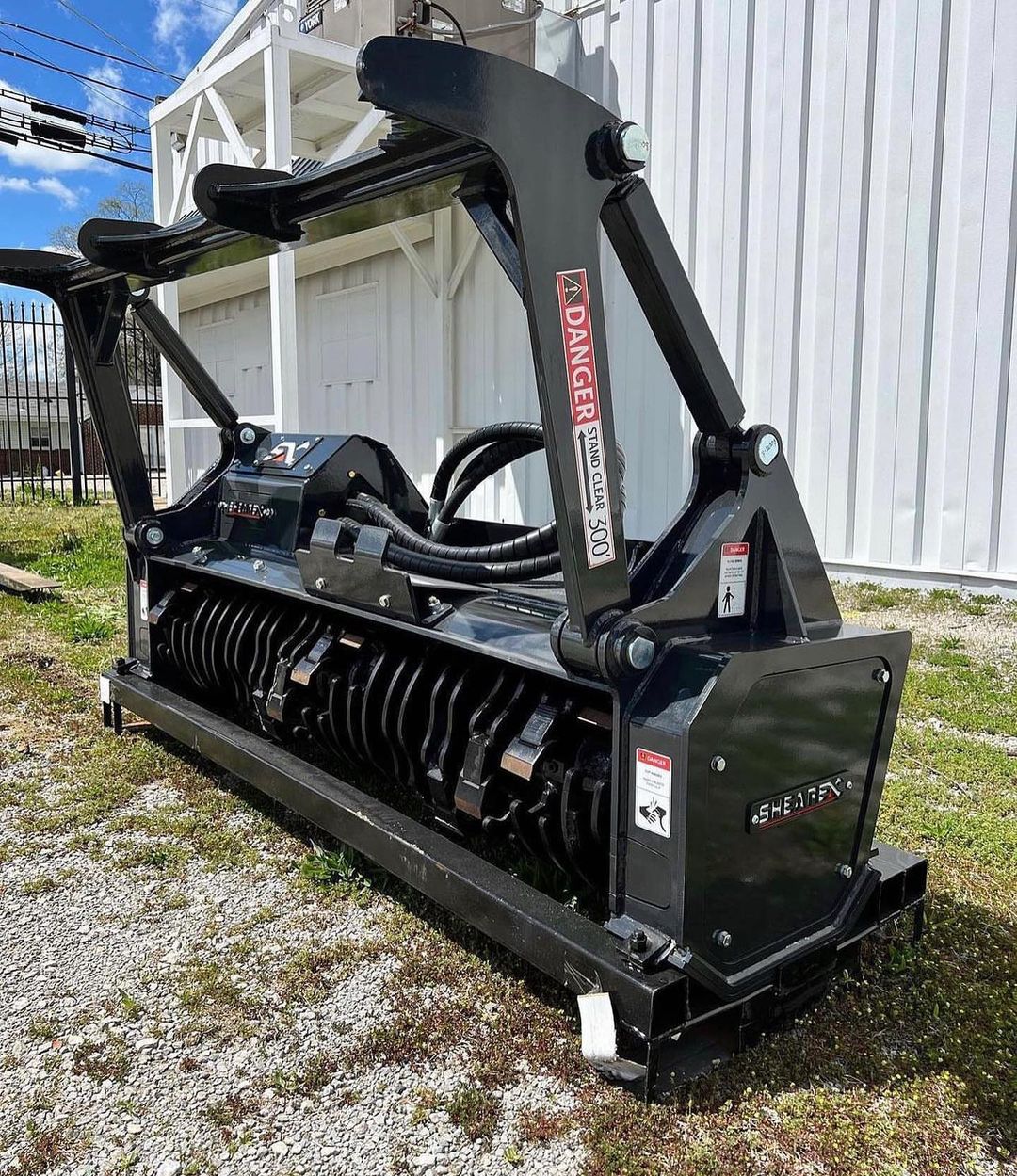

Our Bite Limiter Mulchers are engineered for superior performance and ease of use, making them ideal for large-scale land clearing and forestry operations. These mulchers attach seamlessly to the front of your skidsteer or heavy machinery, providing efficient and powerful mulching capabilities.

Designed for heavy-duty mulching tasks, the Bite Limiter Mulcher delivers exceptional performance and durability. Its front mount design allows for better control and maneuverability, making it easier to clear large areas of dense vegetation and preventing wildfire.

CONVEX DX™ PROTECTION SYSTEM

Our unique Convex DX system uses a double-ring to force the material towards the center of the rotor, effectively reducing the amount of material being cut per pass and alleviating strain on the blade holder.

BLADE ANGLE OPTIMISED FOR A PERFECT CUT

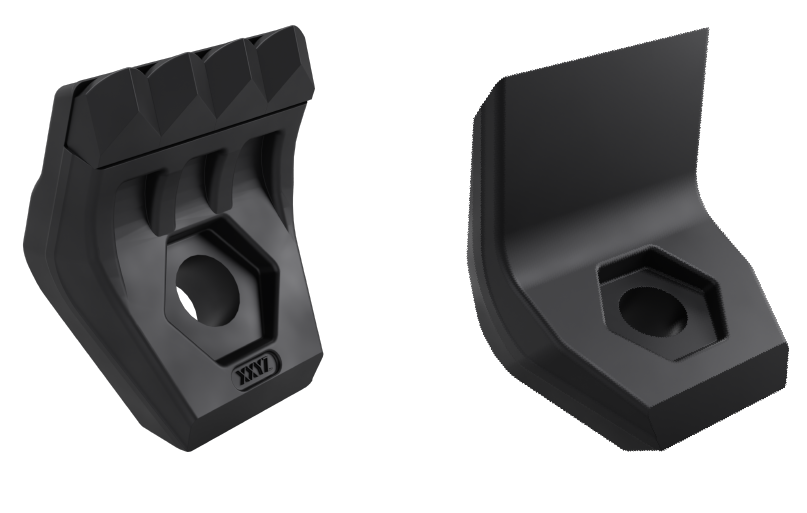

Our new blade and blade mount design allows for more durability and cutting power for our mulchers for skid steers. The rotor maintains its power throughout the blades’ lives.

ROADSIDE MAINTENANCE
The power and speed of Shearex’s skid steer hydraulic mulcher can clear the sides of any hunting lanes, trails, roads or highways.

FOREST FIRE PREVENTION
Cutting firebreaks can be a safe and efficient way to limit the spread of forest fires when you use the best skid steer forestry mulcher on the market today!

INFRASTRUCTURE
Skid steer mulchers can easily manage new roads to maintain a right of way under electrical lines or over pipelines.

LAND MANAGEMENT

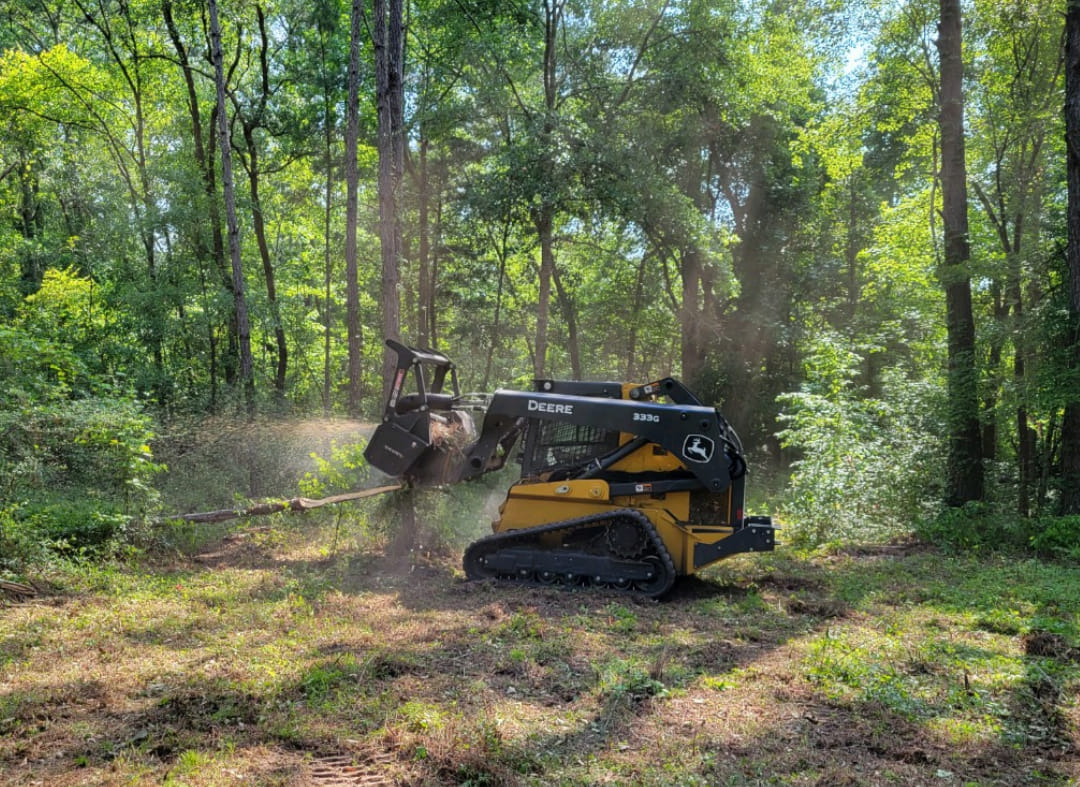

A hydraulic mulcher is the most efficient tool to cut underbrush and keep your private property accessible.

Models		HM-60SR	HM-70SR	HM-70DR	HM-70SV	HM-88LV	HM-90SV	HM-100SV2
Recommended Minimum Carrier power	HP (KW)	68 (50)	74 (55)	74 (55)	125 (95)	140 (104)	170 (127)	250 (190)
Cutting Width	IN (CM)	59 (149)	75 (190)	75 (190)	75 (190)	87 (220)	91 (230)	100 (254)
Cutting Dist. from Ground Level	IN (CM)	0.4 (1)	0.4 (1)	0.4 (1)	0.4 (1)	0.4 (1)	0.4 (1)	0.4 (1)
Number of Blades on Rotor	IN (CM)	21	27	27	24	28	33	36
Optimal Target Material Diameter	IN (CM)	6 (15)	8 (20)	8 (20)	10 (25)		15 (40)	24 (60)
Exterior Lenght	IN (CM)	49.25 (125)	49.25 (125)	48 (124)	48.75 (124)	50 (126)	47 (118)	47 (118)
Exterior Height	IN (CM)	51 (129)	51 (129)	57 (146)	59 (150)	59 (150)	53 (134)	59 (150)
Exterior Width	IN (CM)	72 (183)	89 (226)	89 (226)	90 (228.25)	102 (259)	106 (269)	118 (299.25)
Rotor Diameter	IN (CM)	17,625 (45)	17,625 (45)	17,625 (45)	20 (50)	20 (50)	20 (50)	20 (50)
Approximate Typical Weight	LBS (KG)	2,300 (1,043)	3,000 (1,361)	3,285 (1,490)	3,640 (1,655)	3,880 (1,760)	4,272 (1,938)	5,094 (2,311)
Variable Displacement Axial Piston Motor	CC	80	110	110	160	160	160	2x160
Min. Required Continous Flow	gal/min; (l/min)	23 (87)	33 (133)	33 (133)	47 (178)	47 (178)	47 (178)	95 (360) for 160cc 70 (265) for 110cc
Max. Allowed Continous Flow	gal/min; (l/min)	42 (159)	54 (204)	54 (204)	76 (288)	76 (288)	76 (288)	150 (568)
Max. Operating Pressure	PSI (BAR)	6,000 (410)	6,000 (410)	6,000 (410)	6,000 (410)	6,000 (410)	6,000 (410)	6,000 (410)
Rotating Speed	RPM	2,600	2,600	2,600	2,500	2,500	2,300	2,300
Hydraulic Push Bar		N/A	N/A	N/A	Optional	N/A	Optional	Optional
Front Deflector		N/A	N/A	Included	N/A		N/A	N/A
Hydraulic Motor Option		N/A	N/A	N/A	N/A	N/A	N/A	Optional 2x110

The Front Mount mulcher is equipped with power between 68 hp to 250 hp, and can be mounted on your skid steer.

Our Bite Limiter Mulcher is compatible with skid steer loaders and front mount carriers, providing a versatile and powerful mulching solution for your equipment lineup.
